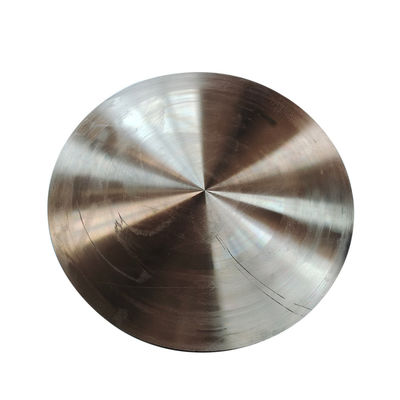

C7701 BZn18-26 Large Stock Nickel Silver CuNi18Zn27 Alloy Strip UNS C77000 0.3mm Width<200mm Cutting Service ASTM Standard
|
|
Λεπτομέρειες:
Πληρωμής & Αποστολής Όροι:
|
Λεπτομερής Περιγραφή Προϊόντος
| Πρότυπο: | ASTM B122 | Επιφάνεια: | Ευφυής |
|---|---|---|---|
| Πάχος: | 0.05 ̇2 | Δύναμη ή όχι: | Όχι |
| Τύπος: | $cu-Νι-ZN | Σκάφος: | Καυτό κρύο κύλισμα forging& |
| Σχήμα: | Foil&Strip | ΦΑΣΑΡΙΑ: | 2.0742 |
| JIS: | C7701 | CU: | Min53 |
| Ανυψωμένος: | CuNi18Zn27 |
C7701 BZn18-26 Large Stock Nickel Silver CuNi18Zn27 Alloy Strip UNS C77000 0.3mm Width<200mm Cutting Service ASTM Standard
Product Description
C7701(CuNi18Zn27) UNS.C77000
Nickel Silver Alloys, also called Copper - Nickel - Zinc alloys, 65 - 18 - 27 respectively.which has good formability, good corrosion and tarnish - resistance performance, and this alloy has the pleasing silver - like color.
Chemical composition
| Articles | Chemical composition | |||||
| GB | UNS | EN | JIS | Cu% | Ni% | Zn% |
| BZn18-26 | C77000 | CuNi18Zn27 | C7701 | 53-56 | 16.5-19.5 | Rem |
Physical properties,fabrication properties
| Physical properties | fabrication properties | |||||||||
| density g/cm3 | electrical conductivity %IACS | thermal conductivity W/(m.K) | modulus of elasticity GPa | specific heat J/(g.K) | cold-workability | machinability | electric plating property | hot dip tin plating property | weldability | corrosion |
| 8.73 | 5 | 32 | 125 | 0.34 | excellent | suitable | excellent | excellent | good | excellent |
Mechanical properties
| Mechanical properties | |||||||
| State | Hardness HV | Tension test | bending test | ||||
| Thickness mm | Tensile strength MPa | elongation % | thickness | angles | ID | ||
| 0 | - | 0.1-5.0 | ≥380 | ≥20 | ≤1.6 | 180° | sticking closely |
| 1/2H | 150-210 | 0.1-5.0 | 540-655 | ≥8 | ≤1.6 | 180° | 300% of thickness |
| ≤0.5 | 400% of thickness | ||||||
| H | 180-240 | 0.1-0.15 | 630-735 | - | ≤1.6 | 180° | 600% of thickness |
| >0.15-5.0 | ≥6 | ≤0.5 | 600% of thickness | ||||
| EH | 210~260 | 0.1-5.0 | 705~805 | - | - | - | - |
Features
1) Good color
2) High toughness
3) High strength
4) High stability
5) Excellent elasticity with fine silver gloss
6) Good fatigue
7) Rust and corrosion resistance properties
8) C7521 and C7541 have very good deep-drawing performance
Applications
1) Shielding material for communication electronics
2) Antenna material
3) EMI-shielding material
4) Spring contact
5) Flexible terminal
6) Environmentally-friendly plating-free electronic parts and components
7) Quartz oscillator
8) High-level material
9) Electric material
Any Inquiry about the Nickel Silver Strip..Welcome to asking.
Production Process
Zinc Germany Copper Alloy Copper Alloy Roll Weight 50kg~5000kg
0.6mm Nickel Silver Copper Alloy Copper Alloy MOQ 50kg
Package
Strip C7521 / Copper Alloy Copper Alloy OEM Service Available
Zinc Germany Copper Alloy Copper Alloy Surface Bright like silver
Testing Equirement
0.6mm Nickel Silver Copper Alloy Copper Alloy Package Standard plywood case packaging or according to your demand
Shipment
Strip C7521 / Copper Alloy Copper Alloy Shape Strip Roll
FAQ:
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
