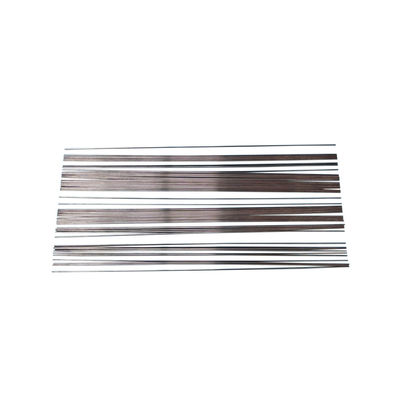

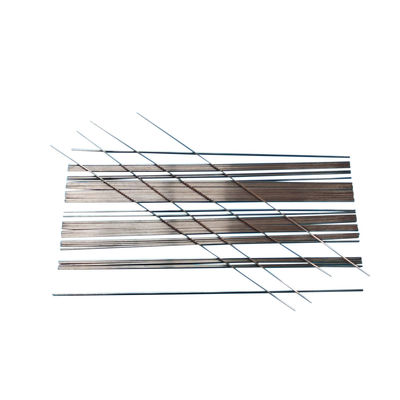

06Cr19Ni10 Stainless Steel Microtubule with 2B Surface Finish and 4*0.5*1000mm Dimensions for Aerospace Components
|
|
Λεπτομέρειες:
Πληρωμής & Αποστολής Όροι:
|
Λεπτομερής Περιγραφή Προϊόντος
| Εφαρμογή: | Αεροδιαστημικό στοιχείο | Σχήμα: | Σεντόνι |
|---|---|---|---|
| Επιφάνεια: | φωτεινό &smooth | Χρώμα: | Ασημένιο λευκό |
| Χαρακτηριστικό: | Υψηλή απόδοση | Πρότυπο: | ASTM, DIN |
| Πυκνότητα: | 70,75 g/cm3 | ||
| Επισημαίνω: | 06Cr19Ni10 stainless steel microtubule,ASTM stainless steel industrial tubing,2B finish stainless steel microtubule |
||
06Cr19Ni10 Microtubule ASTM 4*0.5*1000mm Stainless Steel Industrial 2B Surface Finish
Production steel category
301/304/316/409L/410L/430/316L/304L/409/310S/321
200 series: 201,202,202Cu,204Cu,
300 series: 301,303/Cu,304/L/H,304Cu,305,309/S,310/S,316/L/H/Ti,321/H,347/H,330,
400 series: 409/L,410,416/F,420/F,430,431,440C,441,444,446,
600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D,
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760,2304,LDX2101.LDX2404,LDX4404,904L
Others: 254SMo,253Ma,F15,Invar36,1J22,N4,N6 etc
Chemical composition(JIS-G4305/4312) Unit:%
| Steel category | C | Si | Mn | P | S | Cr | Ni | Mo | Ti |
| 301 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 16.00-18.00 | 6.00-8.00 | ||
| 304 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 18.00-20.00 | 8.00-10.50 | ||
| 316 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 16.00-18.00 | 10.00-14.00 | 2-3 | |
| 409L | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 10.50-11.75 | 6*C%-0.75 | ||
| 410L | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 11.00-13.50 | |||
| 430 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 16.00-18.00 | |||
| 316L | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 16.00-18.00 | |||
| 304L | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 18.00-20.00 | 12.00-15.00 | 2-3 | |
| 409 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 10.50-11.75 | 9.00-13.00 | 6*C%-0.75 | |
| 310S | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 24.00-26.00 | 19.00-22.00 | ||
| 321 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | 17.00-19.00 | 9.00-13.00 | ≥5*C% |
| Item | Stainless steel sheet / stainless steel plate /stainless steel coil |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,BS,GB |
| Material |
201,202,304,304L,309S,310S,316,316L,316Ti,317L,321,347H, 409,409L,410,420,430 |
| Finish(Surface) |
NO.1, NO.2D, NO.2B, BA,NO.3, NO.4,NO.240,NO.400,Hairline, NO.8,Brushed |
| Exported Area | USA,UAE,Europe,Asia,Middle East,Africa,South America |
| Thickness | Form 0.2-120mm |
| Width | 1500mm/1800mm/2000mm,etc or we can also help cut as you require |
| Length |
6000mm-8000mm or we can make the length as you require |
| Package Details |
Standard seaworthy package(wooden boxes package,pvc package, and other package) Each sheet will be covered with PVC, then put into wooden case |
| Payment | Payment by T/T, 30% as advance payment and 70% balance pay before shipping. |
| Advantage |
1.Alaways have stock 2.bottom price 3.High quality,quantity is with preferential treatment 4.We can cut stainless steel sheet in any shapes 5.Strong ability to supply 6.Famous stainless steel company in China and overseas. 7.Branded stainless steel 8.Reliable quality and service
|
Characteristics:
Shiny surface condition excellent workability
Applications:
It generally used in braiding the hose for bathing product and machinery. With it good flexibility,resistant to high temperature and resistant to corrosion,it used widely in many industries.
Type 304 often refers to as "18-8" (18% chromium, 8% nickel ). T-304 is the basic stainless alloy mostly commonly utilized for wire cloth weaving. It withstands outdoor exposure without rusting and resists oxidation at an elevated temperature up to 1400 Degrees Fahrenheit. Type 304 L is very similar to T-304, the difference being the reduced carbon content for better weaving and secondary welding characteristics.
Type 316: Stabilized by the addition of 2% molybdenum, T-316 is an "18-8" alloy. Type 316 has better resistance to pitting corrosion than the other chromium-nickel stainless steels where brines, sulfur-bearing water or halogen salts, such as chlorides are present. Type 316 L: Type 316 L is very similar to T-316, the difference being the reduced carbon content for better wire cloth weaving and secondary welding characteristics.
A,Thickness tolerance(JIS-G4305) Unit:mm
| (width) (Depth) |
<160 | 160-250 | 250-400 | 400-630 | 630-1000 |
| <0.10 | ±0.010 | ±0.020 | - | - | - |
| 0.10-0.16 | ±0.015 | ±0.020 | - | - | - |
| 0.16-0.25 | ±0.020 | ±0.025 | ±0.030 | ±0.030 | - |
| 0.25-0.40 | ±0.025 | ±0.030 | ±0.035 | ±0.035 | ±0.038 |
| 0.40-0.60 | ±0.035 | ±0.040 | ±0.040 | ±0.040 | ±0.040 |
| 0.60-080 | ±0.040 | ±0.045 | ±0.045 | ±0.045 | ±0.05 |
B,Width Tolerance of Steel Stirp Trimming Unit:mm
| (width) (edge status) |
<400 | 400-630 | 630-1000 |
| rolled edge | +100 | +200 | +250 |
C,Width Tolerance of Rolled Steel Strip Edge Unit:mm
| (width) (Depth) |
<160 | 160-250 | 250-400 | 400-630 | 630-1000 |
| ≤0.60 | ±0.15 | ±0.15 | ±0.30 | ±0.30 | ±0.50 |
| 0.60-0.80 | ±0.15 | ±0.15 | ±0.30 | ±0.30 | ±0.50 |
